Question 1

What is 3D LiDAR laser scanning, and how does it work for existing buildings?

Accepted Answer

3D laser scanning (or LiDAR) is a non-contact, non-destructive measurement technology that captures the precise physical shape and dimensions of a building. The scanner emits millions of eye-safe laser beams per second, measuring the distance to every surface it hits—including walls, ceilings, ductwork, and structural elements—to create an accurate digital snapshot of reality.

Question 2

What is a "Point Cloud"?

Accepted Answer

A point cloud is the raw data file generated by a 3D laser scanner. It consists of millions (or billions) of individual, highly accurate spatial data points plotted in 3D space. When viewed together, these points form an incredibly detailed, dimensionally accurate 3D visual "cloud" of the scanned environment.

Question 3

How does raw point cloud data turn into a Revit BIM model?

Accepted Answer

Raw point cloud data is imported directly into Autodesk Revit as a contextual background. Our BIM specialists then trace over and convert these static points into intelligent, parametric building elements—such as walls, windows, structural steel, and MEP piping—effectively building a fully editable 3D BIM Digital Twin of your property.

Question 4

Why is laser scanning better than traditional manual field measuring?

Accepted Answer

Manual field measuring using tape measures or hand-held lasers is slow, prone to human error, and often misses crucial concealed or out-of-reach details. 3D laser scanning captures everything within line-of-sight down to millimeter accuracy, drastically reducing field time, eliminating costly return site visits, and preventing design errors during construction.

Question 5

What Level of Development (LOD) can you deliver for Revit models?

Accepted Answer

We can deliver Revit models tailored to your specific project needs, typically ranging from LOD 200 (schematic design elements with approximate geometry) up to LOD 300/350 (detailed, highly accurate models suitable for construction documentation and trade coordination).

Question 6

Can laser scanning capture hidden elements behind walls or above ceilings?

Accepted Answer

Laser scanners can only capture surfaces within their direct line of sight. However, if ceiling tiles are lifted or access panels are opened, the scanner can capture above-ceiling MEP systems and structural components. For fully concealed elements, we cross-reference existing architectural record drawings with scan data.

Question 7

How long does a typical 3D scan and modeling process take?

Accepted Answer

Timelines depend on site square footage and geometric complexity. A typical commercial facility (e.g., 5,000–10,000 sq. ft.) usually requires 1 day on-site for scanning and 3 to 5 business days for point-cloud processing and full Revit modeling.

Question 8

What file formats will I receive upon project completion?

Accepted Answer

Depending on your project requirements, we typically deliver:Revit File (.RVT) – Fully parametric 3D BIM model.Point Cloud Files (.RCP / .RCS or .E57) – Compatible with Autodesk, AutoCAD, and navisworks software.2D CAD Drawings (.DWG) or PDFs – Floor plans, sections, and exterior elevations extracted from the model.

Question 9

How does point cloud data help with Clash Detection in design?

Accepted Answer

By running automated clash detection (using tools like Autodesk Navisworks) between your proposed new architectural/MEP designs and the scanned point cloud, we can identify spatial conflicts before construction begins. This prevents expensive Change Orders and field delays on-site.

Question 10

Does 3D scanning disrupt active building operations or tenants?

Accepted Answer

Not at all. 3D laser scanning is quiet, fast, and completely non-invasive. We can perform scans during regular business hours without disturbing occupants or schedule off-hours/weekend scans for sensitive environments like healthcare facilities or occupied corporate offices.

ARCHITECTURAL AS-BUILT & BIM SERVICES

CAPTURING REALITY WITH 3D SCANNING

We replace traditional, error-prone manual measurements with high-definition 3D laser scanning. This non-invasive process captures millions of precise data points—collectively known as a Point Cloud—in minutes, documenting every surface, pipe, and structural nuance.

This method eliminates information gaps, reduces costly field revisions, and provides the ultimate baseline for coordination.

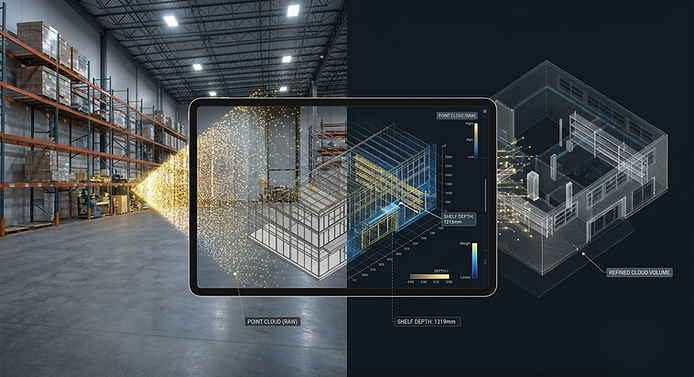

POINT CLOUD TO BIM WORKFLOW

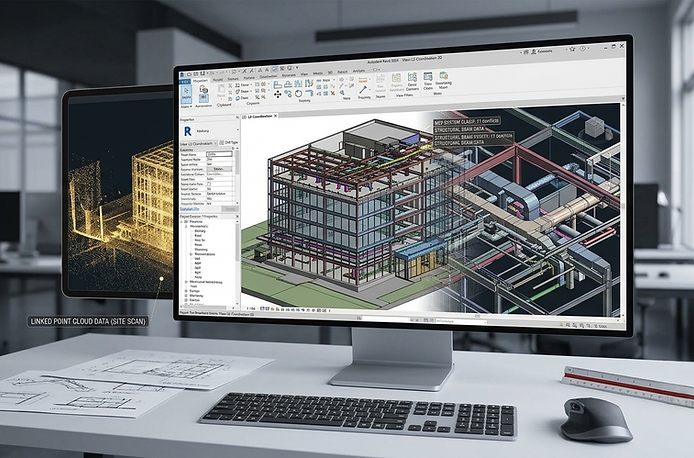

REVIT & BIM MODELING: BUILDING THE INTELLIGENT DIGITAL TWIN

Our expertise goes far beyond 3D visualization. We convert raw point cloud data into fully realized Building Information Models (BIM) using industry-standard platforms like Autodesk Revit.

A BIM digital twin is more than just geometry; it is an intelligent database of physical and functional characteristics. We deliver models categorized to specific Levels of Detail (LOD), providing you with:

Precise Geometry: Accurate wall thicknesses, structural elements, and existing MEP systems.

Data Integration: Models embedded with information about materials, equipment specs, and operational data.

Clash Detection: Pre-coordinate your new designs against existing conditions to eliminate field conflicts.

THE MOTIF BIM ADVANTAGE: CLARITY & COORDINATION

READY TO START WITH PRECISION?

Whether you are managing a complex institutional renovation or a simple commercial TI, ensure your team is working with the best possible data.

Contact Motif Architecture today to discuss your project and learn how our As-Built and BIM services can save you time and mitigate risk.
